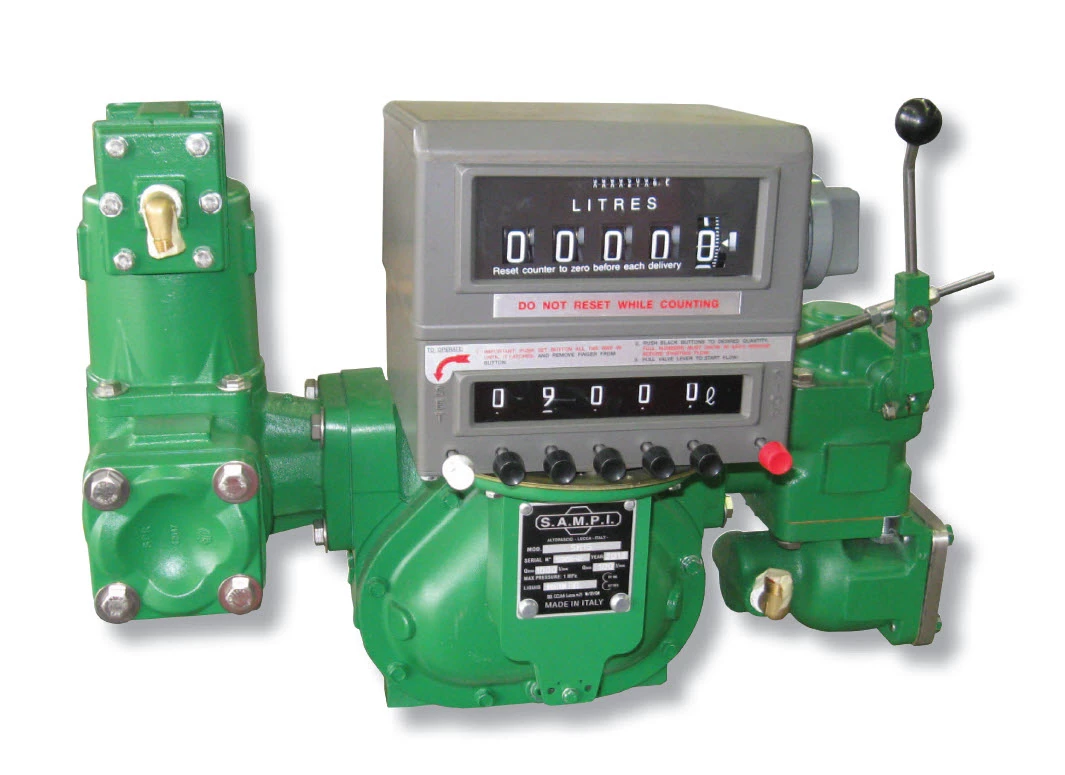

Superior Accuracy at constant flow: With all other conditions being constant, the SAMPI meter does not vary more than 0.05% in repeatability over the entire range.

Accuracy over the widest range of flow: The SAMPI meter has an ideal combination of minimum seal or slippage area with lowest pressure differential across the seal. This results in better accuracy over a wide range of flow than available in other type of commercially produced positive displacement meters.

Accuracy regardless of pressure fluctuations: With the SAMPI meter’s unique dual-case design, the bearing surfaces of the meter element are internally and externally subjected to the same system pressure. Therefore, the meter element cannot be stretched or distorted to cause changes in seal area that would adversely affect accuracy.

• Low Maintenance cost.
• Low pressure loss.
• Self-contained operation without electrical power.
• Available with traditional mechanical seals or with glandless magnetic driven pulse output device.
• Weights & Measures approval (world-wide) for custody transfer.
• Electronic accessories designed and approved to ATEX 94/9 normative.
• Can be partnered with Liquip’s DFV electronic register for an automatic register head.
